10-04-2006, 23:04
|
 |
מנהל פורום חומרה
|
|
חבר מתאריך: 27.05.02
הודעות: 22,477
|
|
|
את הכותרת קראת? פיסקה ראשונה קראת?
זה מחשב.

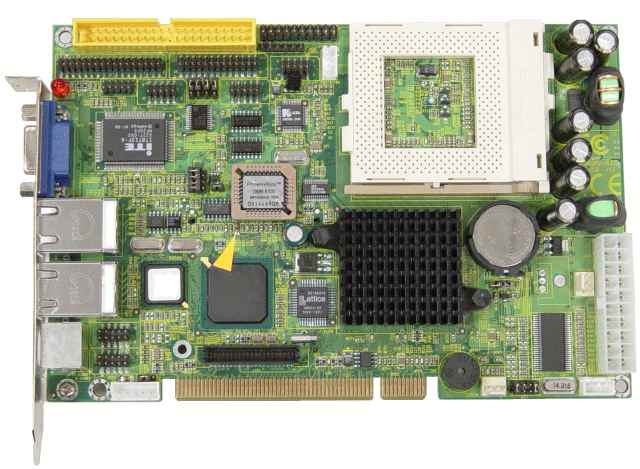

IND-C815DL PCI INDUSTRIAL CPU BOARD
The IND-C815DL is a highly integrated industrial single board computer (SBC) containing a high performance Low power consumption Socket-370 Pentium III Tualatin and Celeron with FSB 133/100MHz processors, graphic visual controller and DUAL 10/100 base-T autoswitch LAN controller. The IND-C815DL is built around the Intel most advanced core logic chipset available, the Intel 82815. The performance that comes with this chipset includes SDRAM memory optimization and bus design.
The IND-C815DL provides on-board Dual 10/100 Mbps LAN, integrated with Intel 82559 and ICH2 82562ET controller. This board equipped with four USB ports supporting up to 127 USB devices. The serial ports provide RS-232/RS-422/RS-485 jumper selectable.
The IND-C815DL on-board CompactFlash socket that uses supports Type I/II cards up to 512MByte and 8Mbit Flash Disk device on BIOS socket provided. The Award BIOS with 2MB Flash in Firmware Hub support PnP, APM, Multi boot, DMI, and ACPI, meet various requirements of the most advanced industrial environment.
The IND-C815DL contains an on-board daughterboard connector for DVI and TV-out, support NTSC, PAL,CVBS, S-Video and RGB outputs up to 1024x768 graphics resolutions.
_____________________________________
The only certainty in life is that there are no certainties.
|
